1.Higher Safety Protection
2.Intelligent Built-in BMS
3.Faster Dis/Charging Speed
4.100% unbalanced output enhances self-consumption

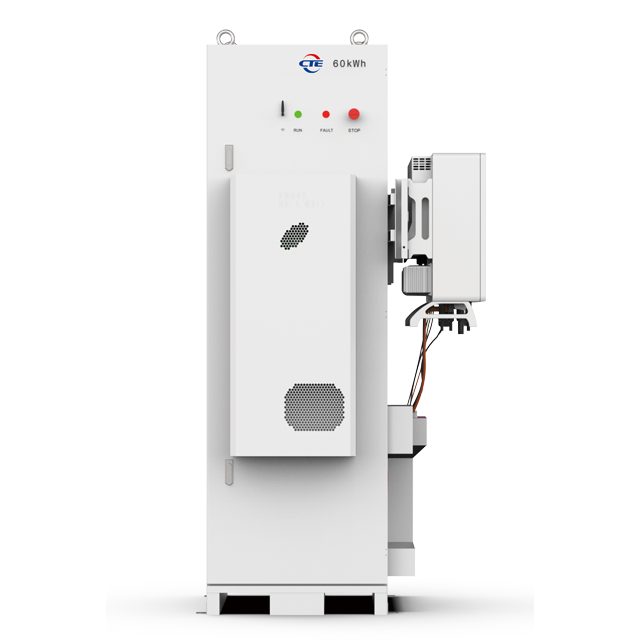

Product Type | LFP 60kWh Pack |
Total Energy* | 64.8kWh |
Battery Capacity | 53Ah*2 |
Max.recommended DOD | 93% |
Voltage Range | 576-672Vd.c |
Nominal Voltage | 614.4Vd.c |
Nominal Dis/charging Current | 100A/100A |
Max. Charge Voltage | 672Vd.c |
Weight( N.W.) | 900kg(undertermind) |
Dimension(mm)(L*W*H) | 1000*850*2045mm |
Operating Condition | Indoor&Outdoor(With Shelter) |
Operating Temperature | -20~55℃ |
WIFI Frequency Range | 2400MHz~2483MHz |
Humidity | <60%(No condensed water) |
Over Voltage Category | II |
Cooling Type | Natural cooling |
Installation | Ground mounted |
IP rating | IP55 |
Protective Class | I |
Max. Connection Number | 12S1P |
Communication | CAN/ RS485 |
Protection Mode | Hardware&software protection |
Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature |
Safety | Cell UL TUV |
Hazardous Material Classification | 9 |
Transportation | UN 38.3 |
Product Warranty | All information contained in this document is subject to change without notice 1)For better battery life cycles,we suggest charge in 50A(0.5C @25°C) 2)For better battery life cycles,we suggest discharge in 50A(0.5C @25°C) |

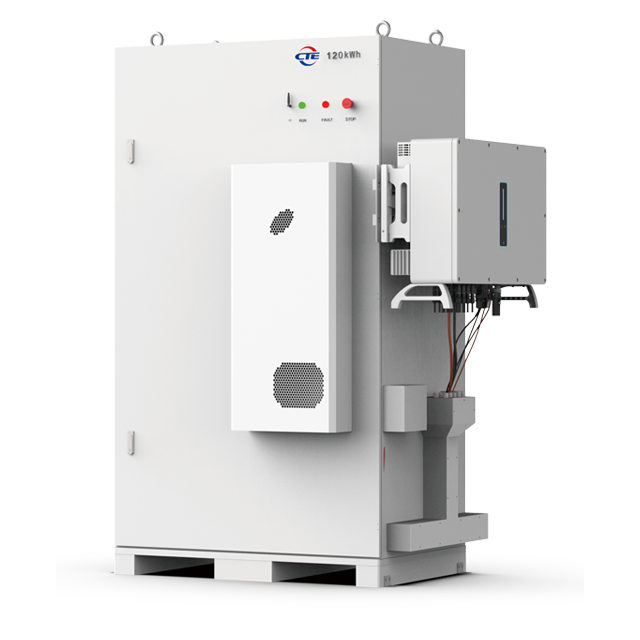

Product Type | LFP 120kWh Pack |
Total Energy* | 129.6kWh |
Battery Capacity | 53Ah*2 |
Max.recommended DOD | 93% |
Voltage Range | 576-672Vd.c |
Nominal Voltage | 614.4Vd.c |
Nominal Dis/charging Current | 200A/200A |
Max. Charge Voltage | 672Vd.c |
Weight( N.W.) | 1500kg(undertermind) |
Dimension(mm)(L*W*H) | 1500*850*2045mm |
Operating Condition | Indoor&Outdoor(With Shelter) |
Operating Temperature | -20~55℃ |
WIFI Frequency Range | 2400MHz~2483MHz |
Humidity | <60%(No condensed water) |
Over Voltage Category | II |
Cooling Type | Natural cooling |
Installation | Ground mounted |
IP rating | IP55 |
Protective Class | I |
Max. Connection Number | 12S2P |
Communication | CAN/ RS485 |
Protection Mode | Hardware&software protection |
Battery Protection | Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature |
Safety | Cell UL TUV |
Hazardous Material Classification | 9 |
Transportation | UN 38.3 |
Product Warranty | 10 years warranty All information contained in this document is subject to change without notice 1)For better battery life cycles,we suggest charge in 50A(0.5C @25°C) 2)For better battery life cycles,we suggest discharge in 50A(0.5C @25°C) |
